GPFCN180/130A400

The GPFCN-180/130A400 is a smart power system: its 76.8kW-rated smart power station (2300×1750×2400mm) pairs with a 50kW-service intelligent firewood unit (2400×1000×1550mm) for reliable, well-sized power support. To solve the pain points such as high fuel consumption of diesel generators, untimely load response, and weak power grid adjustment ability, our company combines rail transit hybrid technology to develop a smart power station with diesel generators and energy storage as the core, and uses microgrid technology to realize grid-connected operation of photovoltaic, utility, and other energy systems. It provides energy saving, high efficiency, and low carbon distributed power supply for users in different scenarios. As part of SinoMac, SinoGen also provides complete power supply solutions that are powered by DCECCCECSDECCAT, our ranges of products including open type generator sets, silent-type generator sets, super-silent-type generator sets, mobile trailers, complete power truck and complete power cars for railway applications. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.

Advantages of GPFCN180/130A400 Fuel Saver

  • Compared to the traditional diesel generator set, it can save at least 30% of fuel. By using a national Il emission diesel engine, the station can reduce the combustion emissions of diesel engines.

  • The diesel generator set can be shut down for a long time, and the operation under low load and overload can be avoided to increase the service life of the diesel generator set.

  • The fuel saver can not only be used as a common power supply output equipment, but also can realize the power expansion, and wind energy grid-connection, and other functions.

  • The fuel saver set relies on its powerful computing ability to enable the energy storage to respond to sudden changes in power and sudden cuts. Additionally, the fuel saver set can absorb and eliminate transient interference and harmonics in the power grid, thereby improving the quality of the power supply.

Technical Specifications

Basic Introduction of GPFCN180/130A400 Fuel Saver

Fuel Saver Model: GPFCN180/130A400
Total Power: 180 kW
Rated Output Voltage: 400 Vac
Rated Output Frequency: 50 Hz
BESS Power: 130 kW
Service power: 50 kW
Size: 2300×1750×2400mm
System noise(dB): ≤75@7m
Class of protection: IP54

Coming Soon…

Coming Soon…

Coming Soon…

Model

Total Power

Rated Output Voltage

Rated Output Frequency

Size

GPFCN180/130A400 180 400 50 2300×1750×2400mm
GPFCN230/130A400 230 400 50 2300×1750×2400mm
GPFCN330/130A400 330 400 50 2300×1750×2400mm
——END——

Product Data of GPFCN-180/130A400

Model Number GPFCN-180/130A400 Peak Power (kVA) 130
Rated Power (kW) 76.8 Electricity (kWh) 76.8
Standby Power (kW) 55 Service Power (kW) 50
Sustained Power (kW) 40 Sustained Power (kW) [Combined] 116.8
Rated Power (kW) [Combined] 126.8 Peak Power (kVA) [Combined] 185
Smart Power Station Size (mm) 2300×1750×2400mm Smart Firewood Unit Size (mm) 2400×1000×1550mm
——END——

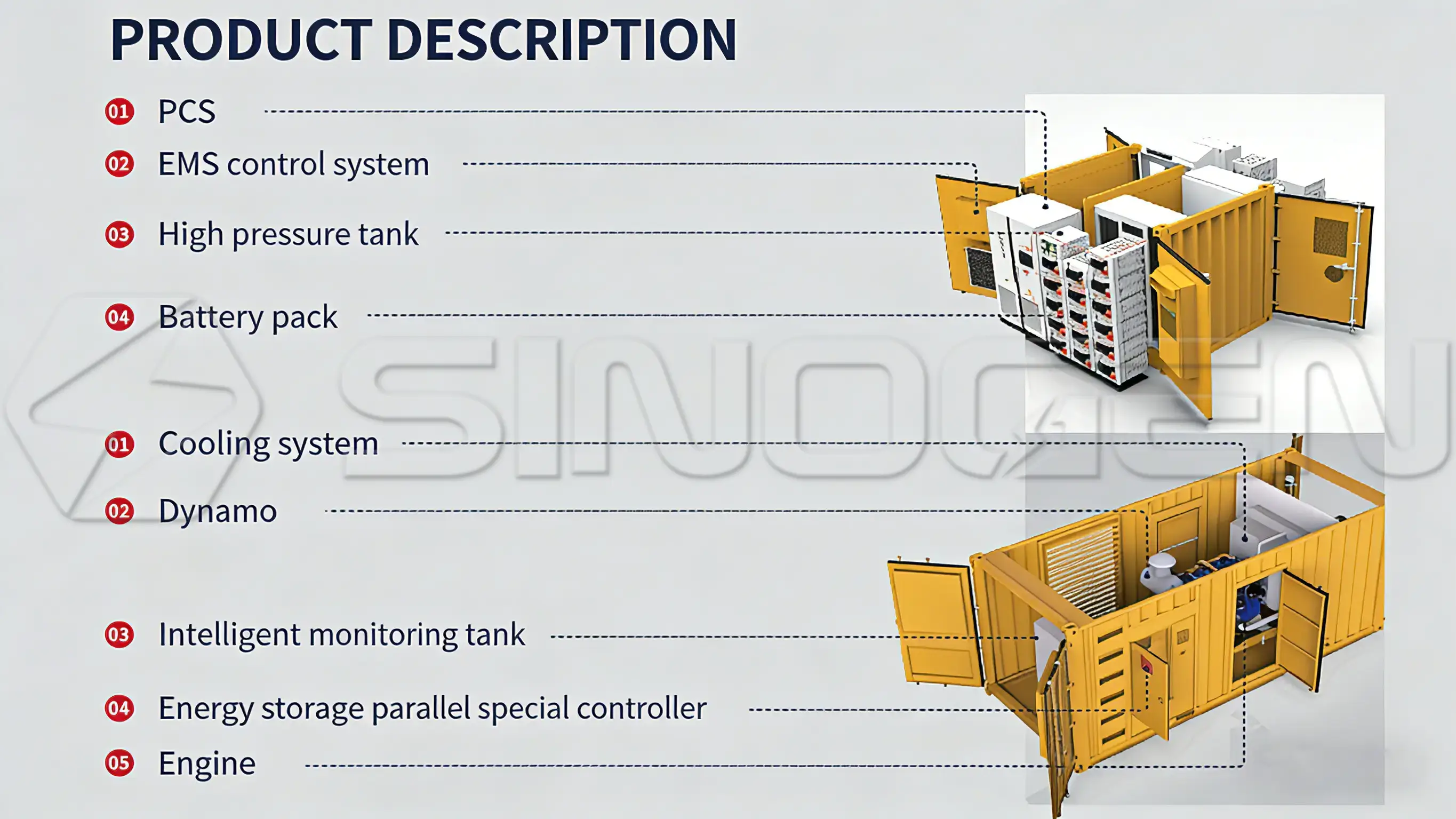

SinoGen Fuel Saver Diesel Generator Set.

Specifications of GPFCN-180/130A400

Rated Output Voltage (Vac) 400 Rated Output Frequency (Hz) 50
Output Phase Number three-phase four-wire Power Supply System TT
Working Ambient Temperature (℃) -20-45 Storage Ambient Temperature (℃) -20-50
Operating Relative Humidity 5%-95% System Noise (dB) ≤75@7m
Protection Class IP54
——END——

Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
