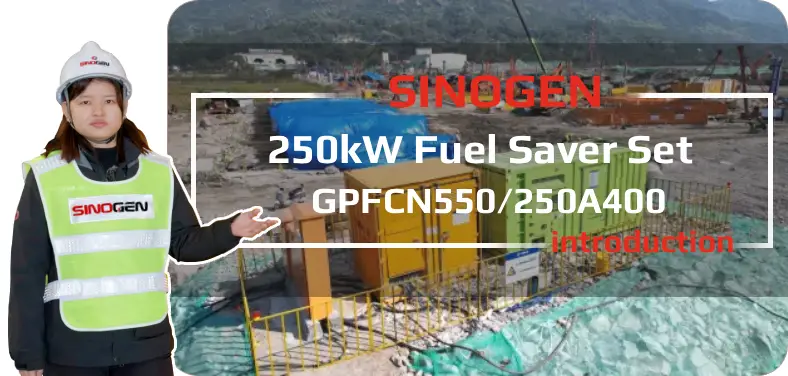

GPFCN550/250A400

The GPFCN-550/250A400 is a smart power system: its 153.6kW-rated smart power station (2300×1750×2400mm) pairs with a 300kW-service intelligent firewood unit (4700×2000×2400mm) for reliable, well-sized power support. To solve the pain points such as high fuel consumption of diesel generators, untimely load response, and weak power grid adjustment ability, our company combines rail transit hybrid technology to develop a smart power station with diesel generators and energy storage as the core, and uses microgrid technology to realize grid-connected operation of photovoltaic, utility, and other energy systems. It provides energy saving, high efficiency, and a low-carbon distributed power supply for users in different scenarios. As part of SinoMac, SinoGen also provides complete power supply solutions that are powered by DCECCCECSDECCAT, our ranges of products including open type generator sets, silent-type generator sets, super-silent-type generator sets, mobile trailers, complete power truck and complete power cars for railway applications. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.

Advantages of GPFCN550/250A400 Fuel Saver

  • Compared to the traditional diesel generator set, it can save at least 30% of fuel. By using a national Il emission diesel engine, the station can reduce the combustion emissions of diesel engines.

  • The diesel generator set can be shut down for a long time, and the operation under low load and overload can be avoided to increase the service life of the diesel generator set.

  • The fuel saver can not only be used as a common power supply output equipment, but also can realize the power expansion, and energy grid-connection, and other functions.

  • The fuel saver set relies on its powerful computing ability to enable the energy storage to respond to sudden changes in power and sudden cuts. Additionally, the fuel saver set can absorb and eliminate transient interference and harmonics in the power grid, thereby improving the quality of the power supply.

Technical Specifications

Basic Introduction of GPFCN550/250A400 Fuel Saver

Fuel Saver Model: GPFCN550/250A400
Total Power: 550 kW
Rated Output Voltage: 400 Vac
Rated Output Frequency: 50 Hz
BESS Power: 250 kW
Service power: 300 kW
Size: 2300×1750×2400mm
System noise(dB): ≤75@7m
Class of protection: IP54



Coming Soon…

Coming Soon…

Coming Soon…

Model

Total Power

Rated Output Voltage

Rated Output Frequency

Size

GPFCN450/250A400 450 400 50 2300×1750×2400mm
GPFCN550/250A400 550 400 50 2300×1750×2400mm
GPFCN610/250A400 610 400 50 2300×1750×2400mm
GPFCN650/250A400 650 400 50 2300×1750×2400mm
GPFCN750/250A400 750 400 50 2300×1750×2400mm
GPY-650A400 650 400 50 6058×2438×2830mm
——END——

Product Data of GPFCN-550/250A400

Model Number GPFCN-550/250A400 Peak Power (kVA) 250
Rated Power (kW) 153.6 Electricity (kWh) 153.6
Standby Power (kW) 330 Service Power (kW) 300
Sustained Power (kW) 240 Sustained Power (kW) [Combined] 393.6
Rated Power (kW) [Combined] 453.6 Peak Power (kVA) [Combined] 580
Smart Power Station Size (mm) 2300×1750×2400mm Smart Firewood Unit Size (mm) 4700×2000×2400mm
——END——
SinoGen Fuel Saver Diesel Generator Set.

Specifications of GPFCN-550/250A400

Rated Output Voltage (Vac) 400 Rated Output Frequency (Hz) 50
Output Phase Number three-phase four-wire Power Supply System TT
Working Ambient Temperature (℃) -20-45 Storage Ambient Temperature (℃) -20-50
Operating Relative Humidity 5%-95% System Noise (dB) ≤75@7m
Protection Class IP54
——END——

Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
